Equipment

Home / Solutions > Equipment

Air Shower And Air Shower Tunnel

CleanTec air shower is a self-contained air-recycling unit designed to remove surface lint, dust and other contaminants from personnel entering the cleanroom.

Directed, high velocity airflows (approx. 22 m/s) sweep away surface particles, which are then trapped in the HEPA(High Efficiency Particulate Air) filters inside the air shower. A programmable logic controller (PLC) allows for a cycle time of 0-60secs for the operation of the air shower.

Electro-mechanical (EM) locks fitted on the entry and exit doors prevents accidental cross-contamination due to premature or accidental opening of doors.

The size and design of the air shower can be customized to include auto-doors, 90-degree turns, air shower tunnels, as well as 3 way entry/exit systems.

Air Shower

Air Shower_edited
Air Shower_edited

press to zoom
Air Shower  IMG_4160
Air Shower IMG_4160

press to zoom
Air Shower Interior
Air Shower Interior

press to zoom
Air Shower_edited
Air Shower_edited

press to zoom
1/6

Air Shower Tunnel

Air Shower Tunnel 167
Air Shower Tunnel 167

press to zoom
Air Shower Tunnel MEM AST8
Air Shower Tunnel MEM AST8

press to zoom
Air Shower Tunnel MEM AST18
Air Shower Tunnel MEM AST18

press to zoom
Air Shower Tunnel 167
Air Shower Tunnel 167

press to zoom
1/6


Fan Filter Unit

CleanTec Fan Filter Unit (FFU) is a device used to supply filtered air to a cleanroom environment. It consists of a HEPA/ULPA filter and an appropriately-sized fan module on top that provides the necessary pressure to move the air across the filter.

Compared to conventional ducted HEPA filter systems, FFU systems require less ceiling space and are easier to balance as the motors are individually driven.

Standard FFUs come with an attached fan controller to regulate the fan speed. Electronically-Commutated (EC) fans (EC-FFUs) are also available, which allow for the monitoring and control of the individual FFUs via a computer.


Optional Add-ons:
- Intake Prefilter
- 5-speed transformer-type or stepless speed controller
- Remote monitoring system
- Pressure gauge test port

AC FFU

AC_SUS_FFU_edited_edited_edited_edited
AC_SUS_FFU_edited_edited_edited_edited

press to zoom
Fan Filter Unit IMG_3636
Fan Filter Unit IMG_3636

press to zoom
Fan Filter Unit IMG_1922
Fan Filter Unit IMG_1922

press to zoom
AC_SUS_FFU_edited_edited_edited_edited
AC_SUS_FFU_edited_edited_edited_edited

press to zoom
1/6

EC FFU

EC FFU
EC FFU

press to zoom
EC FFU
EC FFU

press to zoom
1/1



Clean Booth

CleanTec clean booths are a modular, cost-effective alternative to full-fledged cleanrooms. Cleanliness levels of up to Class 10 is achievable with the appropriate setup.

The aluminum / steel / stainless steel framework of cleanbooth offers excellent structural stability with minimal construction time.

Adjustable supports allows for easy height adjustment and levelling, and the modular panel design allows the side panels to be constructed from a variety of materials such as aluminums composite panels, anti-static vinyl sheet, stainless steel panels etc.

ISO Class 7 Clean Booth (Class 10,000)

ISO Class  Clean Booth (Class 100,000)

Clean Booth IMG_4404
Clean Booth IMG_4404

press to zoom
Clean Booth IMG_1100
Clean Booth IMG_1100

press to zoom
Clean Booth
Clean Booth

press to zoom
Clean Booth IMG_4404
Clean Booth IMG_4404

press to zoom
1/5
Cleanbooth1
Cleanbooth1

press to zoom
Clean Booth
Clean Booth

press to zoom
Clean Booth DSCN0463
Clean Booth DSCN0463

press to zoom
Cleanbooth1
Cleanbooth1

press to zoom
1/3

Clean Bench / Laminar Flow Bench

CleanTec laminar flow benches are self-contained systems that provide an economical contamination controlled environment.

Designed to sit atop an existing table top or as stand-alone units, it offers up to a class 10 or better environment using ULPA filters


A continuous flow of clean air ensures that the work area is constantly purged of any contaminants present.

Benches may be configured for vertical or horizontal airflow direction.

Vertical--flow is used for tall and narrow equipment or when processes and personnel are to be protected from powders, chemicals or solvents.

Horizontal-flow configuration are chosen when the product or process needs to be first in line with the clean air or when workers lean over work surfaces when carrying out the work.

Aluminium profile Clean Bench

Stainless Steel Clean Bench

PowdercoatedCB12
PowdercoatedCB12

press to zoom
PowdercoatedCB22
PowdercoatedCB22

press to zoom
Clean Bench Picture 041
Clean Bench Picture 041

press to zoom
PowdercoatedCB12
PowdercoatedCB12

press to zoom
1/7
SUSCB
SUSCB

press to zoom
Clean Bench DSCN2629
Clean Bench DSCN2629

press to zoom
Clean Bench  Picture 003
Clean Bench Picture 003

press to zoom
SUSCB
SUSCB

press to zoom
1/4


Ceiling Tee System

CleanTec ceiling tee grid system is a simple yet efficient way of constructing a support system for filters, lights and ceiling panels.

The ceiling grid system comes in a default Natural Anodized(NA) aluminum finish but can be powder coated to match the ceiling panel colour.



The medium duty grid is a walkable system that is rated to withstand applied loads of up to 750kg.

50x40 Ceiling Tee System

Ceiling Tee 1
Ceiling Tee 1

press to zoom
Ceiling Tee
Ceiling Tee

press to zoom
CeiilingTeeSample22
CeiilingTeeSample22

press to zoom
Ceiling Tee 1
Ceiling Tee 1

press to zoom
1/9


Pass Box

CleanTec pass boxes are compartments spanning two areas with interlocking access to prevent cross-contamination. Using a mechanical or electrical interlocking system, particles are not allowed to flow freely into the cleanroom.

Pass boxes can be fitted with a miniature air shower system to provide a surface cleaning effect on items placed inside.

Ultra Violet(UV) can be incorporated to provide a disinfecting function.

Powder coated Steel Pass Boxes

Air Shower Pass Boxes

DSCN02922_edited
DSCN02922_edited

press to zoom
11 Powder Coated PassboxOut_IN
11 Powder Coated PassboxOut_IN

press to zoom
Passbox_interior2
Passbox_interior2

press to zoom
DSCN02922_edited
DSCN02922_edited

press to zoom
1/5
passbox4
passbox4

press to zoom
Pass Box IMG_3089
Pass Box IMG_3089

press to zoom
Pass Box DSCN2340
Pass Box DSCN2340

press to zoom
passbox4
passbox4

press to zoom
1/4

Pass Box with mechanical interlock

11 Powder Coated PassboxOut_IN
11 Powder Coated PassboxOut_IN

press to zoom
12 Powder Coated passboxOUT_IN2
12 Powder Coated passboxOUT_IN2

press to zoom
Pass Box IMG_3929
Pass Box IMG_3929

press to zoom
11 Powder Coated PassboxOut_IN
11 Powder Coated PassboxOut_IN

press to zoom
1/6


Ducted HEPA Ceiling Module

CleanTec ducted HEPA ceiling modules consist of HEPA filters fitted with a ducted plenum box for direct connection to an existing HVAC system (note that the HVAC system needs to be appropriately designed for the pressure drop)

These disposable modules can be easily replaced and disposed of after the filters reach their the end of life.

Characteristics:
- Compact and Lightweight
- Low Pressure Drop
- Conforms to EN1822 & IEST-RP
- Leak-free construction

Ducted HEPA

Ducted Filter 2
Ducted Filter 2

press to zoom
Ducted Filter 1
Ducted Filter 1

press to zoom
Ducted Hepa 109
Ducted Hepa 109

press to zoom
Ducted Filter 2
Ducted Filter 2

press to zoom
1/3


HEPA/ULPA Filter

High Efficiency Particulate Air (HEPA) filters are used in cleanrooms to filter the air inside cleanrooms.

Ultra Low Penetration Air (ULPA) filters are used in cleanrooms with lower classifications.


Characteristics:
- Lightweight
- 100% leak tested with certificate
- Low pressure drop
- Conforms to EN1822, & IEST-RP.CC.001.3
- Frames available in gasket-sealed, gel-sealed, or knife-edged.

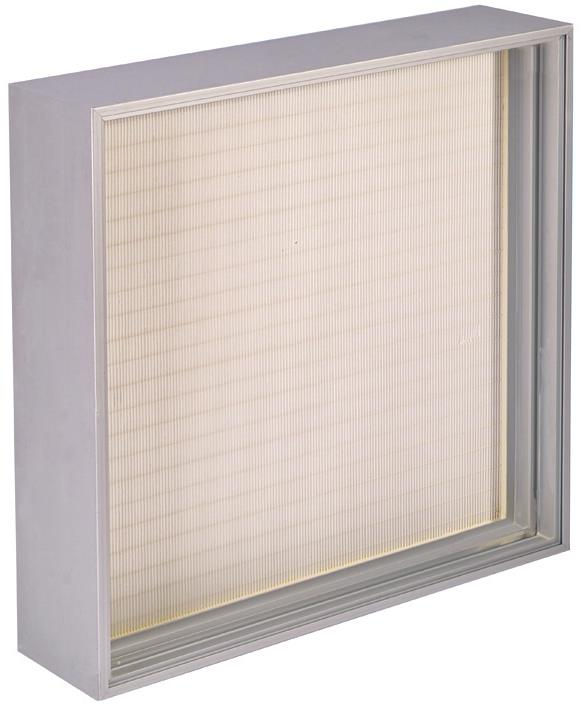

HEPA Filter (mini pleated)

HEPA filter
HEPA filter

press to zoom
HEPA filter
HEPA filter

press to zoom
1/1


Polyurethane (PU) Carbon Filter

Made from activated carbon (AC) powder impregnated in PU foam. The porous PU foam has good permeability and stability. AC powder is sprayed on PU foam fibers so that the filter has bigger contact area and therefore can adsorb faster in order to remove particles.

Features:
- Filters large particles
- Adsorbs odour
- Heat resistant
- Long life span
- Easy to install

Carbon Filter

Carbon Filter 23
Carbon Filter 23

press to zoom
Carbon Filter
Carbon Filter

press to zoom
Carbon Filter 23
Carbon Filter 23

press to zoom
1/2


Cleanroom Isolator

Isolator Units

Stainless Steel Isolater

Isolator  093
Isolator 093

press to zoom
Isolator  IMG_1304
Isolator IMG_1304

press to zoom
Isolator IMG_1847
Isolator IMG_1847

press to zoom
Isolator  093
Isolator 093

press to zoom
1/5


HEPA Box

CleanTec HEPA boxes allow for filters to be replaced easily

Room replaceable type of HEPA boxes are available

Powdercoated HEPA Box

HEPA Box DSCN2933
HEPA Box DSCN2933

press to zoom
HEPA box 4
HEPA box 4

press to zoom
HEPA box 1
HEPA box 1

press to zoom
HEPA Box DSCN2933
HEPA Box DSCN2933

press to zoom
1/7


Safety Unit (Bag-in Bag-out Unit)

Safety unit

Safety Unit

Safety Unit DSC_0035
Safety Unit DSC_0035

press to zoom
Safety Unit
Safety Unit

press to zoom
Boxinboxout
Boxinboxout

press to zoom
Safety Unit DSC_0035
Safety Unit DSC_0035

press to zoom
1/5


Medium Filter

Medium Filter

Medium Filter

Medium Filter
Medium Filter

press to zoom
Medium Filter
Medium Filter

press to zoom
1/1


Chemical Filter

Chemical Filter

Chemical Filter

Chemical Filter2
Chemical Filter2

press to zoom
Chemical Filter2
Chemical Filter2

press to zoom
1/1

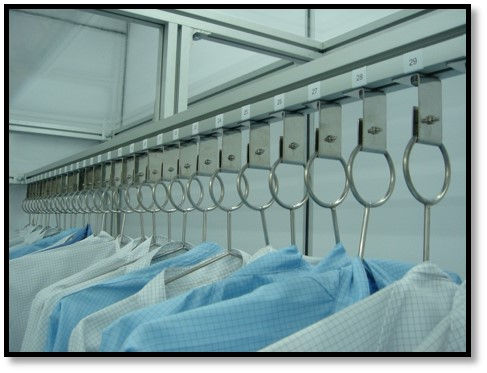

Cleanroom Furniture

Furniture built with cleanroom compliant materials

Stainless Steel Furniture

Powedercoated Steel Furniture

Cleanroom Furniture 4
Cleanroom Furniture 4

press to zoom
Cleanroom Furniture 1
Cleanroom Furniture 1

press to zoom
SUS_4door
SUS_4door

press to zoom
Cleanroom Furniture 4
Cleanroom Furniture 4

press to zoom
1/12
SUSCB
SUSCB

press to zoom
SUSCB
SUSCB

press to zoom
1/1


Cleanroom Lifters

Lifters used for goods hoisting within Cleanrooms

Cleanroom Lifter

Cleanroom Lifter DSCN1935
Cleanroom Lifter DSCN1935

press to zoom
Lifter  DSCN1936
Lifter DSCN1936

press to zoom
Lifter 817
Lifter 817

press to zoom
Cleanroom Lifter DSCN1935
Cleanroom Lifter DSCN1935

press to zoom
1/4


Hand Dryers & Hand Washer

Hand dryers and Washers

Handryers and  Washers

hand dryuer PHOTO-2019-05-06-12-01-16
hand dryuer PHOTO-2019-05-06-12-01-16

press to zoom
Hand Dryer & Washer 1
Hand Dryer & Washer 1

press to zoom
Hand Dryer & Washer 2
Hand Dryer & Washer 2

press to zoom
hand dryuer PHOTO-2019-05-06-12-01-16
hand dryuer PHOTO-2019-05-06-12-01-16

press to zoom
1/5
