The Sunje (SBL) Ion Blower is a high-performance compact electrostatic discharge (ESD) device manufactured by South Korean company Sunje,
designed to neutralize static charges effectively, remove electrostatic charges from components, and protect sensitive electronics.
SUNJE IONIZER
Home / Distributor > SUNJE IONIZER
Ion Blower
(SBL-15S)
Effectively eliminates static at short-to-medium ranges. Its compact, lightweight design allows for versatile installation and easy use in a variety of environments.
Key Features:
-
Medium & small size Ion Blower
-
DC 24V low voltage operation
-
Automatic ion balance control with LED alarm
-
Sliding rear cover for easy tip cleaning and replacement
-
Built-in tip cleaning function
-
25-step adjustable fan speed control
Download PDF Catalogue
Dimensions

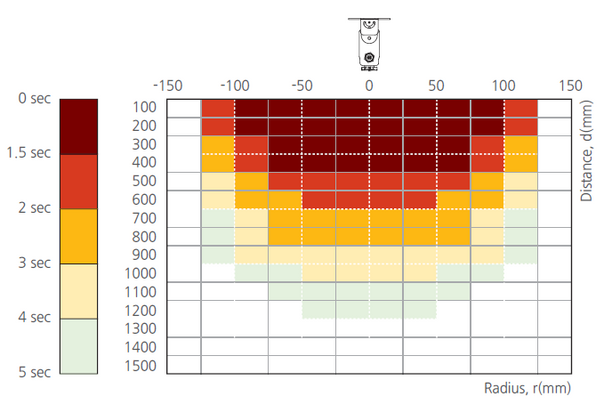

Decay Time Characteristics
Decay Time
± 1,000 V to ±100 V
Charge Plate Capacitance
20pF (150 X 150mm)
Temperature & Humidity
24℃, 50 % RH
Ion Blower
(SOB-S Series)
Main Features:
-
Ceiling-mounted ionizer for enclosed space coverage
-
2 fan (SOB-2S), 3 fan (SOB-3S), 4 fan (SOB-4S), 5 fan (SOB-5S)
-
Automatic ion balance control
-
Slim lightweight low-noise design
-
Easy maintenance with automatic tip cleaning
-
Fan speed control (4 Steps)
-
PLC interface for automation integration
-
IAlarm for ion imbalance and fan fault
-
Optional RMS for real-time monitoring
Download PDF Catalogue

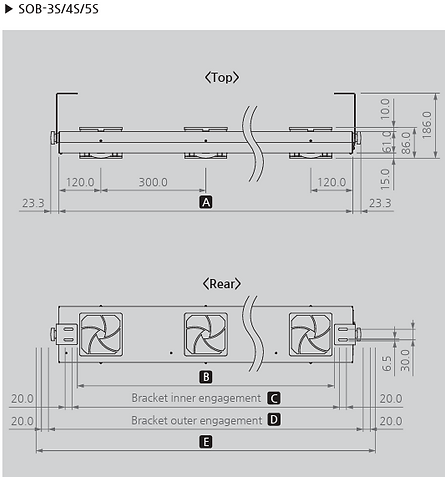

Dimensions
Decay Time Characteristics
Decay Time
±1,000V to ±100V
Charge Plate Capacitance
20pF (150 X 150mm)
Temperature & Humidity
24℃, 50%RH
Ion Bar
(SIB5S-C Series)
Main Features:
-
Stable ion balance even during long-term use.
-
Shock-free design prevents workplace injury.
-
High frequency ensures stable performance and low peak voltage.
-
Low wear and buildup for easier maintenance.
-
One-touch system for quick needle cleaning and replacement.
-
Built-in controller—no extra purchases needed.
-
Cleaning alarm lets you set maintenance reminders.
-
Auto-adjusts ion output based on polarity.
-
Instant alert for abnormal high voltage.
-
Adjustable input voltage to match your setup (with SBP-07A2 controller).
Download PDF Catalogue
Dimensions
Decay Time Characteristics
Charge Plate Capacitance
20pF (150 X 150mm)
Decay Time
±1,000V to ±100V
Temperature & Humidity
24℃, 50%RH
Frequency
260Hz
Air Pressure
0.3 MPa
Flux
56LPM
Socket
Clean Socket (2-Hole-0.2)
